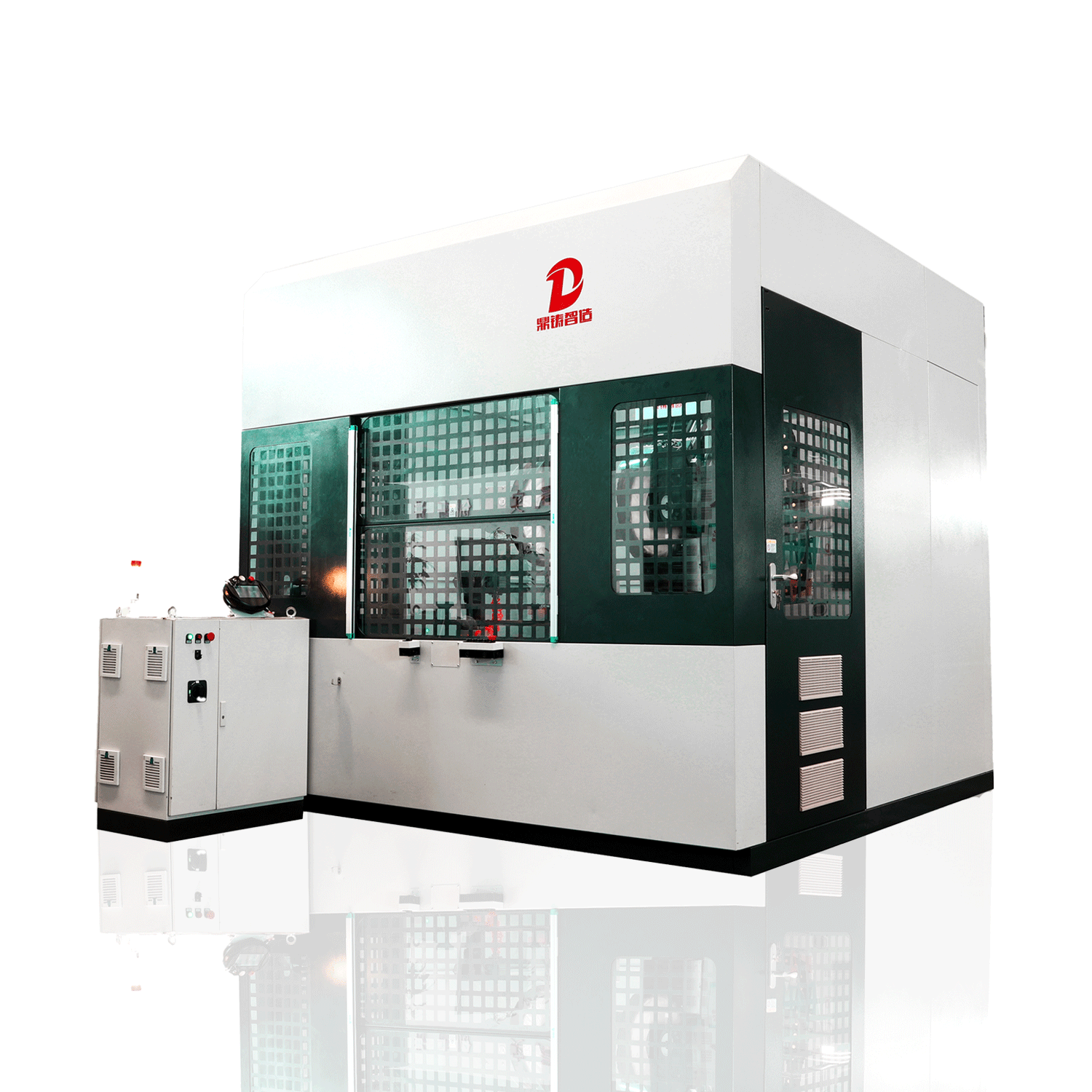

两工位清光机器人NC62-7L

SKU:

产品详情

特点/CHARACTERISTIC

1.  本设备为一种专用的六轴多工位抛光机器人，六个自由度；多工位同时作业，每个工位可安装二种不同布轮，灵活高效；

2.  控制系统采用意大利PROMAX先进的运动控制技术，性能稳定，控制精度高；

3.   编程方法:手持示校器，示校编程，采用手动模式模拟人工抛光并记录轨迹，即可按此路径自行运行；

4.   抛光轮自动补偿功能：抛光布轮损耗后系统能检测到扭力变小实现各方向自动协调补偿；

5.   线速度补偿：当布轮外径减小时系统自动增加转速度补偿速度；

6.   加蜡设定：可根据产品的特点选用固体蜡或液体蜡，自由设定喷蜡时间、频率；

7.   全数字控制，可储存50种程序，并随时调用。

1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 Axis rotary system; Multiple stations simultaneous operation ensures high flexibility and high product efficiency.

2. The control system adopts PROMAX motion control technology from Italy, with stable performance and high control accuracy.

3. Programming method: teaching programming, with portable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-set parameters program.

4. Polishing pressure and wear compensation control performance:   When the polishing cloth wheel is worn out, the system can detect that the torque has become smaller and automatically the compensation in all directions.

5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

6.  Program setting of add polishing wax: free setting of wax spraying time and frequency according to the characteristics of product choice of slid compound or liquid compound.

7. Fully digital control, it can store 50 programs. Programs can be saved and recalled at any time.

8. CN/EN language display on Touch Panel. It is to set all parameters for an easy operation; fault codes display and alarm pages for quick troubles shooting and repair.

NC62

两工位自动清光机

Two-stations Automatic Polishing Machine

特点/CHARACTERISTIC

精密抛光

      -抛光质量均匀，加工工件不变形。

      -高产出，在每个抛光周期中同时抛光两个相同的零件。

      -灵活的生产。在最短时间内改变序列。将零件类型改为抛光机的准备时间约为10分钟。

      -可快速更换夹具。

      -可快速更换抛光拖把。

      -减少固定装置的数量。

      -减少拖把和抛光材料的消耗。

      -抛光系统，避免工件在加工过程中温度过高。

      -快速、简单的编程。互动教育系统。

      -高利润率和摊销。一个操作员可以通过同步工作周期来操作多台机器。

Precision polishing.

      -Uniform polishing quality without deformation of the processed parts.

      -High production. Simultaneous polishing of two equal parts in each polishing cycle.

      -Flexible production. Change of series in the minimum time. The time invested in the preparation of the             machine for changing the type of part to polish is about 10 minutes.

      -Quick replacement of the fixtures.

      -Quick replacement of the polishing mops.

      -Cost-reduction in the amount of fixtures.

      -Important reduction in mops and polishing compounds consumption.

      -Polishing system avoiding excessive temperature of the parts during the working process.

      -Quick and easy programming. Interactive Teach System.

      -High profitability and amortisation. One single operator can handle several machines by synchronizing the        working cycles.

技术参数

TECHNICAL PARAMETERS

Code序号	Item项目	Specifications参数
1	Dimensions (L*W*H) 尺寸	3000*3100*2900mm
2	Machine Power 设备功率	17KW
3	Rated Voltage  额定电压	380V
4	Max. Diameter of polishing wheel  抛光轮最大尺寸	600mm
5	Min. Diameter of polishing  wheel 抛光轮最小尺寸	400mm
6	X-Axis travel (mm)  X轴行程	1100
7	Y-Axis travel (mm)  Y轴行程	900
8	Z-Axis travel (mm)  Z轴行程	700
9	U-Axis travel (mm)  U轴行程	±60°
10	V-Axis travel (mm)  V轴行程	±360°
11	W-Axis travel (mm)  W轴行程	±360°
12	Max.speed X axis   X轴最大速度	20m/min
13	Max.speed Y axis   Y轴最大速度	20m/min
14	Max.speed Z axis   Z轴最大速度	20m/min
15	Max.speed U axis   U轴最大速度	30°/sec.
16	Max.speed V axis    V轴最大速度	30°/sec.
17	Max.speed W axis  W轴最大速度	30°/sec.
