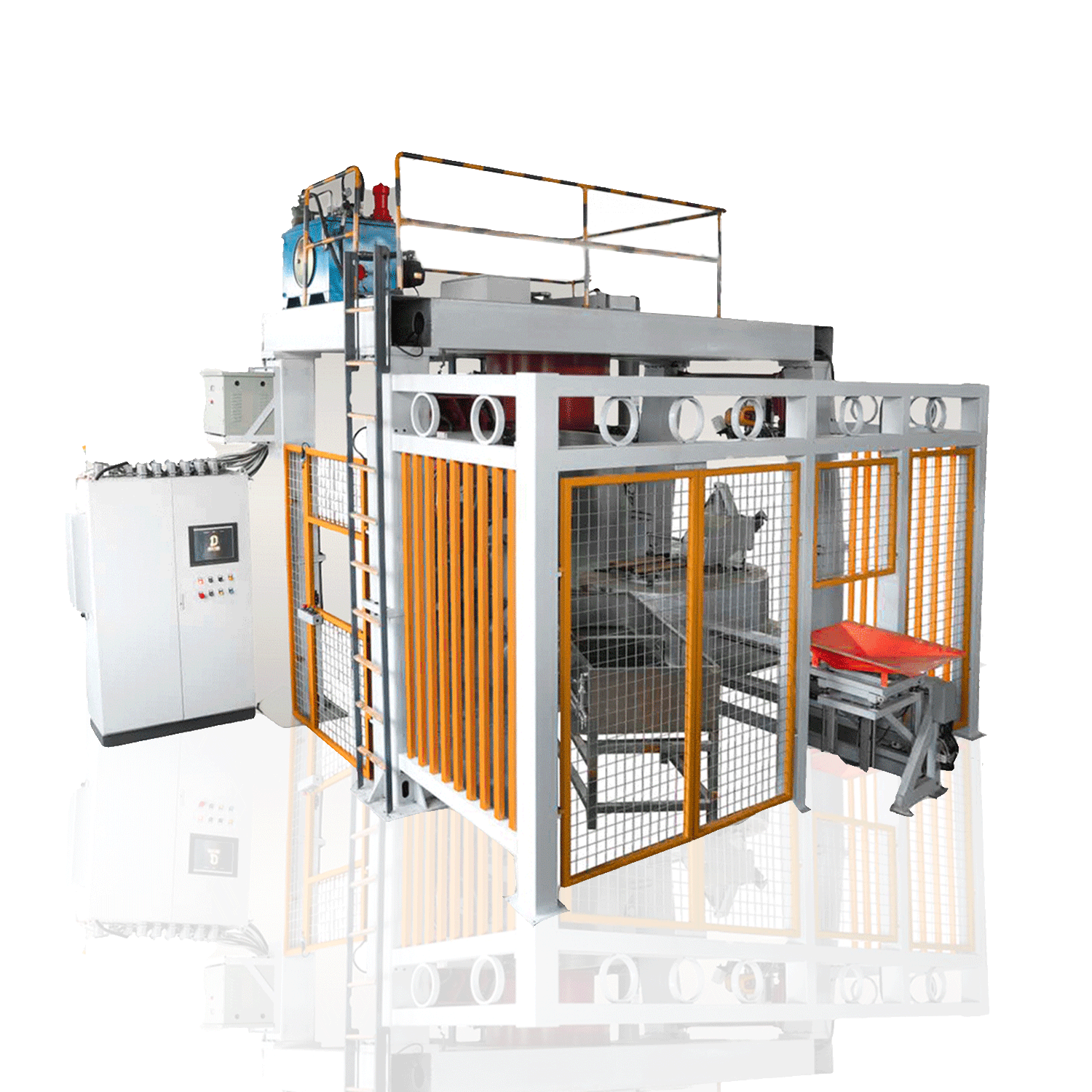

圆盘式双工位低压铸造机RD-5040-S
SKU:1
产品详情
特点/CHARACTERISTIC
全自动机器，两个机械手安装在同心旋转装置上、一个熔炉，为铸件提供高质量、高效率的生产。
1) 班次产能：平均700模/8小时；
2) 本机具有完整低压压铸过程的自动化操作，换模时间短且运用灵活，非常适合于大批量的铸件生产；
3) 特点:
A. 2个机械手独立操作，参数可独立编辑，可以同时工作或者一个换模的同时另一个进行正常生产；
B. 手动放置砂芯；
C. 最大模具尺寸：600 x400x240 mm；
D. 快速换模；
E. 简单的电炉控制系统；
F. 石墨槽冷却模具；
G. 自动卸料，不同的铸件自动分类；
H. 最大融化率700Kg/小时，一个人同时操作两个机械手；
I. 采用伺服电机驱动，高精度，性能稳定，效率高。
Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.
1) Capacity per shift (8 hours): approx. 760 castings
2）Fully automation of the low-pressure die-casting process, short mold change time and flexible application, which is very suitable for mass casting production;
3) Specifications
A. 2 manipulators on a rotary device, operated independently. Operating Parameters can be edited independently. Two manipulators either work at the same time; or one set changes the die, or the other set is under maintenance.
B. Manually setting of the cores
C. Max die dimensions: 600 x400x240 mm
D. Quick die change flanges
E. Simple furnace control electrics
F. Die cooling and coating in a blackwash bath
G. Different die castings are equipped with separated feeders, graphite baths and manipulators.
H. Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.
I. Drive by servo motor, with high precise, stable and efficiency performance.
技术参数
TECHNICAL PARAETERS
|
Code
|
BASIC EQUIPMENT
|
Items
|
Parameters
|
|
1
|
基本参数
|
Equipment Size: L*W*H尺寸
|
7000*6000*3960mm
|
|
2
|
Total Weight
总重量
|
24T
|
|
3
|
Total power
总功率
|
180KW
|
|
4
|
Voltage
电压
|
380V
|
|
5
|
Casting die模具
|
Max. Die Dimensions 模具最大尺寸
|
600*400*240mm
|
|
6
|
Max. Die Thickness 模具最大厚度
|
2*120mm
|
|
7
|
Max. Die Opening stroke最大开模行程
|
370mm
|
|
8
|
Max. Die Weight 最大模具重量
|
200KG
|
|
9
|
Max. force of die closing最大合模力
|
2400KG
|
|
10
|
Max. force of ejector 最大脱模力
|
500KG
|
|
11
|
Max. die ejector stroke 最大脱模行程
|
48mm
|
|
12
|
Furnace 炉子
|
Melting rate 炉子熔率化
|
700KG/H
|
|
13
|
Capacity 容量
|
2800KG
|
|
14
|
Inductors 感应圈
|
2*80KW
|
|
15
|
Hydraulic液压
|
Motor Power 电机功率
|
8.7KW
|
|
16
|
Rated pressure 额定工作压力
|
8Mpa
|
|
17
|
Hydraulic fluid temperature 液压油温
|
≤52 ℃
|
|
18
|
Cooling system 冷却水
|
Water PH Value值
|
7~8.5
|
|
19
|
Pressure 压力
|
3-5bar
|
|
20
|
Temp. 水温
|
20±2 ℃
|
|
21
|
Flow 流量
|
≥400L/Min ≤600L/Min
|
|
22
|
Air pressure 气压
|
Compressed air pressure驱动压力
|
0.5-0.6Mpa
|
|
23
|
Compressed air consumption 用气量
|
18m3 /H
|
|
24
|
Gas煤气
|
Pressure 压力
|
0.5 bar
|
|
25
|
Flow 流量
|
0.225 m3 / h
|
