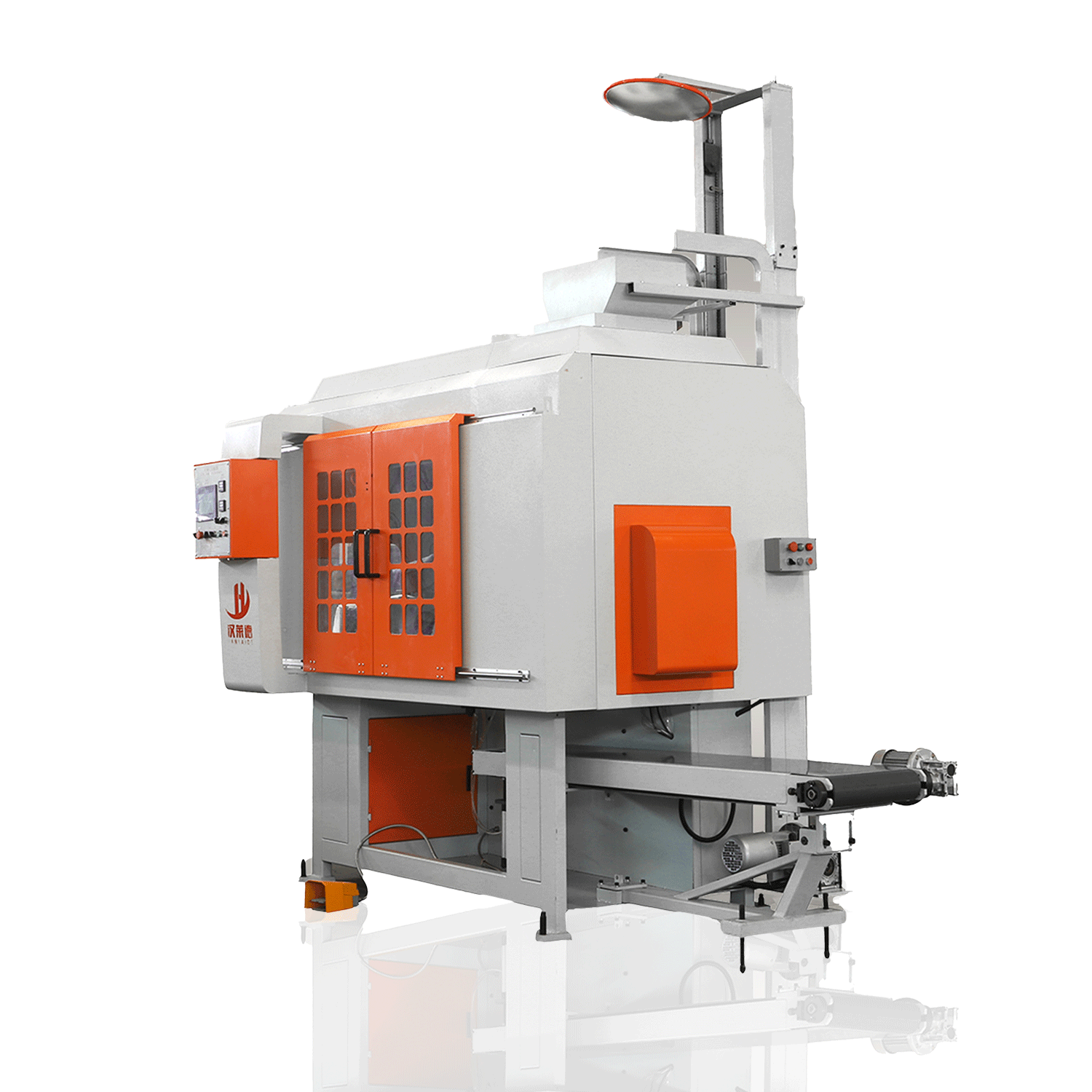

砂芯机


产品详情







特点/CHARACTERISTIC





1. 人机界面,进口优质电子控制及气动元件/液压装置,确保控制准确可靠,操作方便。

2. 有三种模式:手动、单动和自动。

3.射孔口与砂体呈70度角,远离高温区域,便于人工清洗。

4. 本机设有底座整体移动机构,可使底座沿XY轴移动,使对边模具的打孔更方便、准确。

5. 可移动模具上设有抽芯架,以满足模具的特殊要求。

6. 储砂斗内的流沙夹角可达70度,并配有振动电机。适用于铜铸、铝工业中流动性差的湿陷性芯砂的应用。

7. 具有模具调整空间,便于组装不同的模具,降低了对模具尺寸的要求。




1. human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.

2. there are three modes: manual, single action and automatic.

3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually .

4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.

5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.

6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.

7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.





技术参数

TECHNICAL PARAMETERS




Code

Item

Specification

1

Max. Weight of Sand Core 最大砂芯重量

8kg

2

Max. Size of Core Box ( L x W x H) 最大芯盒尺寸

450*330*220mm

3

Heating Plate ( L x W)  加热板

400*300mm

4

Heating Power加热功率

9.6kw

5

Downward Stroke of Ejection Head 射头下压行程

≤30mm

6

Stroke of Mold Opening  开模行程

≤300mm

7

Max. Stroke of Core Remove 抽芯最大行程

150mm

8

Conveyor ( L x W x H) 输送带

2200*450*100mm

9

Total Power 总功率

13.2kw

10

Rising Angle of Conveyor  输送带上升角度

2°~4°

11

Speed of Transportation   输送速度

72mm/s

12

Machine Size ( L x W x H)  设备尺寸

3500*1480*3400mm

13

Speed of Lift (Single Time)  提升速度(单次)

35s

14

Weight of Lift ( Single Time) 提升重量(单次)

5~10kg

15

Total Weight  总重量

2000kg

16

Hydraulic pressure  油压压力

50Kg/cm²
