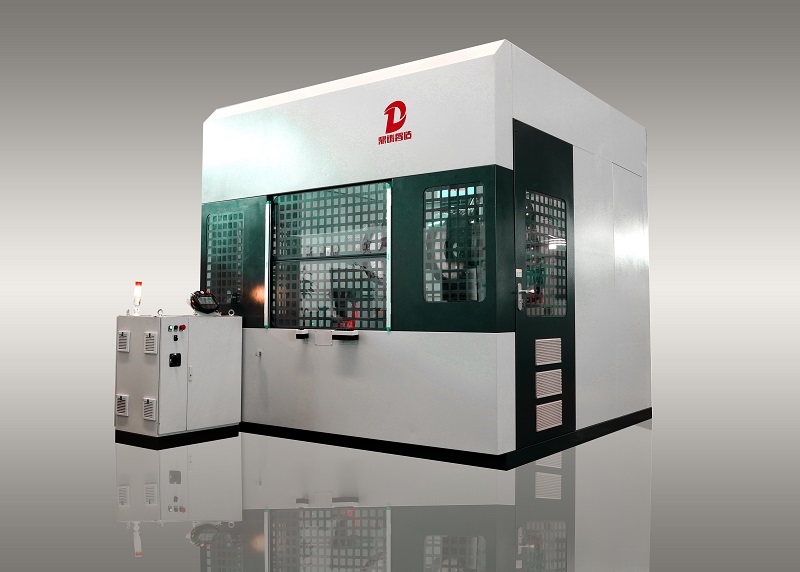

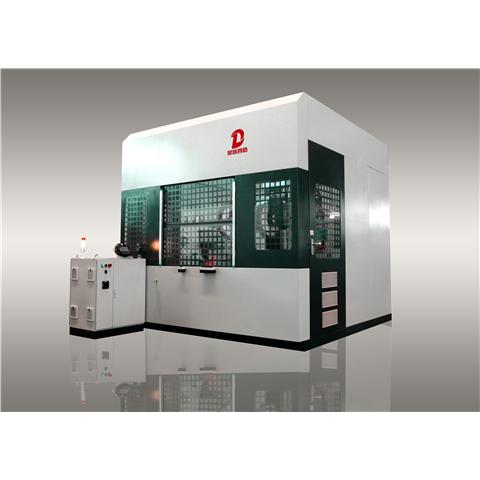

Automatic polishing machine for faucets


Features

I.APPLICAITONS:

1.Faucets

2.Auto spare parts

3.Locks and door handles

4.All kids of metals and jewelry accessory

5.Size range of polishing productsΦ 280*280

2.1Product feature:

2.2.1The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with  of  6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency.

2.2.2 The control system adopts PROMAX motion control technology from Italy,stable propeert,high control accracy.

2.2.3 Programming method:demonstrator programming ,with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

2.2.4 Polishing pressure and wear compensation control performance:   When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction

2.2.5 Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed  and compensation;

2.2.6 Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid wax or liquid wax

2.2.7 Full digital control, Can store 50 programs.Programs can be saved and invoked at any time.

2.2.8 CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.

be mainly for  brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and  accessories.To fulfill the different capacity requirement of customers, we have 2 station and 4 stantion models for customer options.

TECHNICAL PARAMETERS

Code

Item

                                                                                                                                                                                                                   Specifications-2station



Specifications-4station

 1

Dimensions (L*W*H)

3000*3100*2900mm

4400*3400*2900

2

Machine Power

16.5KW

35KW

3

Rated Voltage

380V

380V

4

Max. Diameter of polishing wheel

600mm



600mm

5

Min. Diameter of polishing  wheel

400mm



400mm

6

X-Axis travel (mm)

1200

1200

7

Y-Axis travel (mm)

1100

1100

8

Z-Axis travel (mm)

700

700

9

U-Axis travel (mm)

±90°

±90°

10

V-Axis travel (mm)

±360°

±360°

11

W-Axis travel (mm)

±360°

±360°
