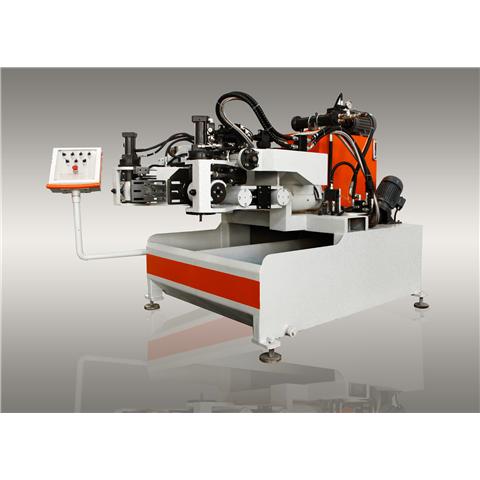

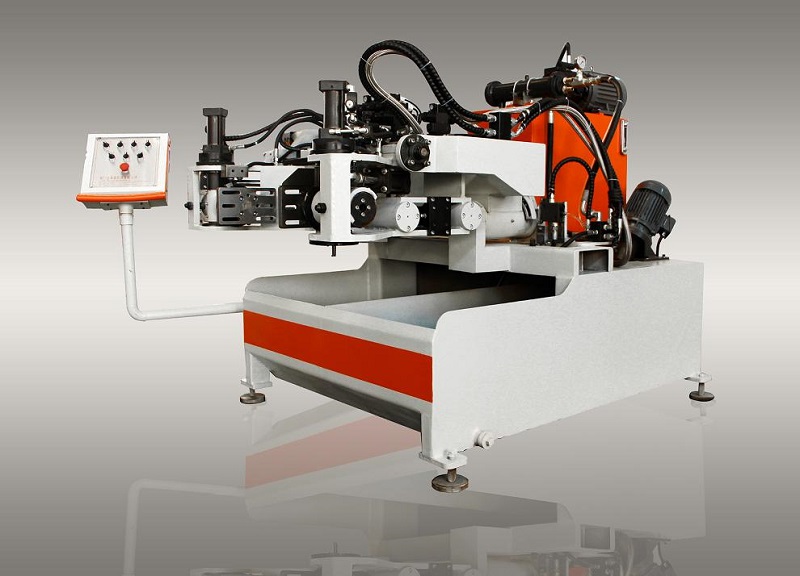

Gravity die casting machine
SKU:0005
Features
With the
vigorous development and diversification of copper processing industry, the
production technology of copper processing industry has been constantly
updating and improving. In order to meet the production needs, our company
specially designed HZ-450 gravity die casting machine according to the
principle of gravity casting. It is suitable for Brass gravity casting, with
simple operation, novel design and reasonable price.
Advanages: 1) 1)the circuit is controlled by PLC, the data is set by touch screen and all
hydraulic components are imported.
2) It is suitable for gravity die casting of
brass and ferroalloy.
3) It can be direct casting, side casting, twice
casting and mixed casting.
4) It is possible to individually adjust the cooling
time of the die.
5) It facilitates the decomposition, combination
and cleaning of dies.
6) It has two functions of manual and automatic
circulation, the counter can be preset, to record the output of each shift.
7) There
is a die adjustment space to facilitate the application of different dies, and
reduce the requirements for the die size.
8) The machine can store the die casting
operation program and set the password
accordingly.
|
TECHNICAL PARAMETERS
|
|
1
|
MAX MOULD SIZE
|
450mm
|
|
2
|
Max Mould Wieght
|
130KG
|
|
3
|
Longest Merger Distance
|
≤250mm
|
|
4
|
Hydraulic Pressure
|
40-60KPa
|
|
5
|
Lateral Casting Angie
|
0º-90º
|
|
6
|
Frantal Casting Angle
|
0º-110º
|
|
7
|
Hydraulic Oil
|
163L
|
|
8
|
Toal Power
|
5.5KW
|
|
9
|
Instaling Top Care Device
|
20mm travel
|
|
10
|
Net Weight
|
1750KG
|
|
11
|
Size Of Appearance Of Machine
|
2250*2160*1560mm
|
