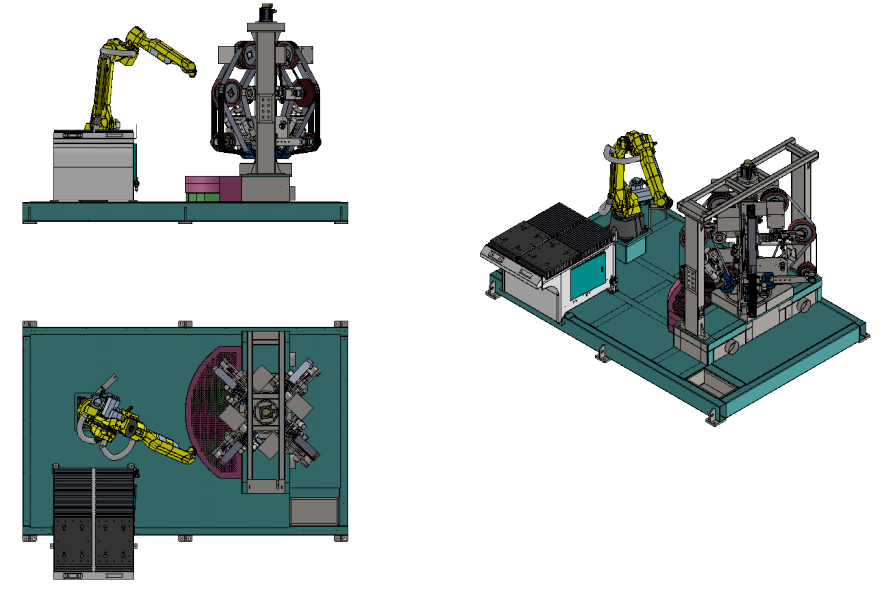

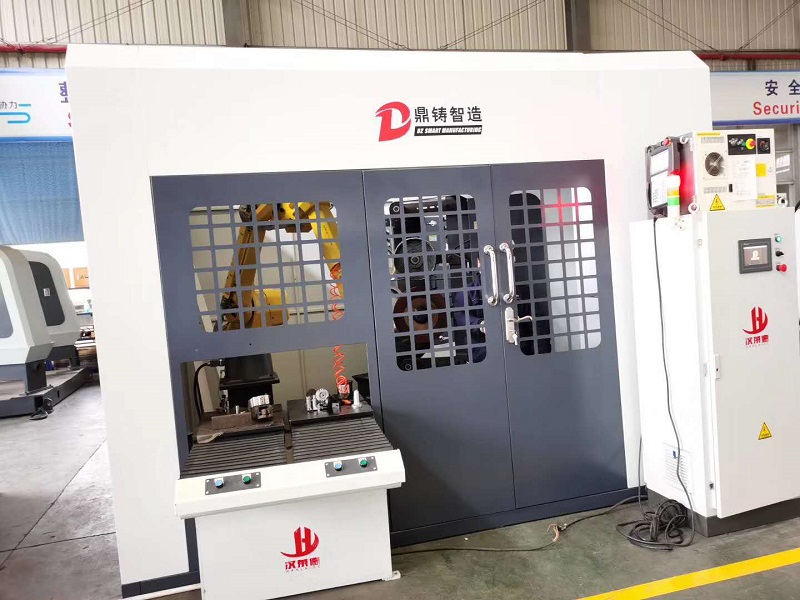

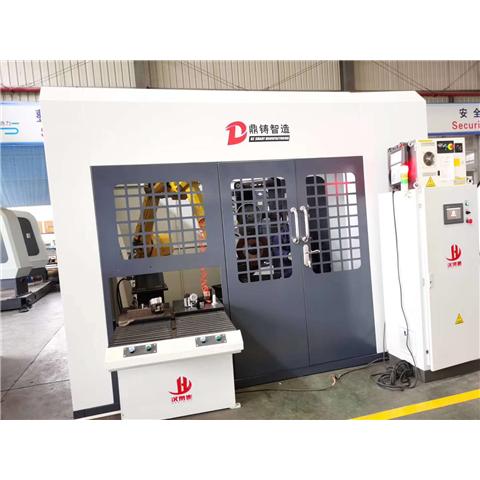

Multiple rotary types abrasive belt grinding machine with robotic


Features

I.Applications


1.Faucets and bathroom accessories:

Grinding, polishing, mirror finishing and satin finishing of any kind of faucet and bathroom accessory of any size and shape –including minimalist designs–made of zamak, aluminum, stainless steel.

2.Handles and accessories:

Grinding, polishing, mirror finishing and satin finishing of doorknobs, handles and other similar parts for doors and furniture made of brass, zamak or stainless steel.

3.Automotive:

Grinding/grinding, buffing, polishing, and satin finishing of automotive-related objects: rims/wheels, profiles, handles, knobs, luggage racks, exhaust pipes. Materials: zamak, aluminum, stainless steel.

Code

Items

HLD-35G

Qty.

1

Robotic

M-20Ia/35M

1set

2

Rotary sand belt



1set

3

Dust chamber



1set

4

Duble stations feeding table



1set

5

Control cabinet



1set

6

Poewr

9KW



7

Voltage

380V



8

Sand belt machine power

4*3KW



9

Size of sand beltmachine

3m/3.2m



10

Sand belt qty.

4pcs



12

Floor space

3450*2350mm




III.Features

3.1 FUNAC robotic M-20Ia/35M

3.2 Program modular, programming easiness with self-learning system.

3.3 Programming method:demonstrator programming ,with protable handed device, contains manually mode to simulate the workmanship grinding and record the track; automatically operating model is available with pre-settled parameters program.

3.4 Full digital control, the program can be saved and called at any time.

3.5 Roatry sand belt machine and multi - grade sandpaper grinding process can be completed at one time.

3.6 High precision, high efficiency.
